CBD Ib Screw Capping Tshuab
Lub tshuab semi-automatic capping yog ib yam khoom siv pneumatic hluav taws xob luam yeeb uas tuaj yeem ua tau sai, yooj yim thiab raug ntsia hlau lub hau rau ntau yam luam yeeb hauv tib lub sijhawm.
Main Structure thiab Txoj Cai Ua Haujlwm
1. Lub ntsiab qauv
Nws yog tsuas yog tsim los ntawm khib, kev khiav hauj lwm workbench thiab hluav taws xob tswj ntaus ntawv. (Cov cuab yeej raug xa tawm tag nrho, tsis muaj cov neeg siv khoom teeb tsa)
2. Lub hauv paus ntsiab lus ua haujlwm
Cov cuab yeej no yog siv los ntsia hlau lub tshuab hluav taws xob atomizer lub tshuab luam yeeb. Nws yog tsim los ntawm peb qhov chaw: ib lub thav duab, lub rooj ua haujlwm, thiab cov khoom siv hluav taws xob tswj. Cov cuab yeej siv tshuab muaj xws li cov khoom siv thav duab, lifting Cheebtsam, thiab rotating Cheebtsam. Cov khoom siv hluav taws xob fuming tuaj yeem ua kom nruj rau cov neeg haus luam yeeb yooj yim, yooj yim, thiab raug vim yog kev sib koom tes ntawm txhua qhov khoom. Cov khoom siv cov ntaub ntawv raug xa mus rau cov tswj vaj huam sib luag ntawm kev ceev, sijhawm, thiab lwm yam sensors, thiab cov cuab yeej tuaj yeem tswj tau.
Main Performance Parameters
|
Lub npe qhov project: semi-automatic capping tshuab |
DHSC6P |
|
Input voltage (V) |
AC 110-220VAC 50-60Hz |
|
Input zog muaj peev xwm (lub zog) |
120W |
|
Siv tau atomizer sab nraud txoj kab uas hla |
9-11 hli |
|
Siv tau atomizer ntev ntau yam |
30-110 hli |
|
Khoom loj (ntev, dav thiab qhov siab) |
360 x 215 x 490 mm |
|
Khoom hnyav |
25kg ua |
|
Ambient kub |
10 ~ 40 degree |
|
Ua haujlwm siab (MPa) |
{0}}.5 ~ 0.8MPa |
|
Tswj hom: |
Pneumatic + hluav taws xob |

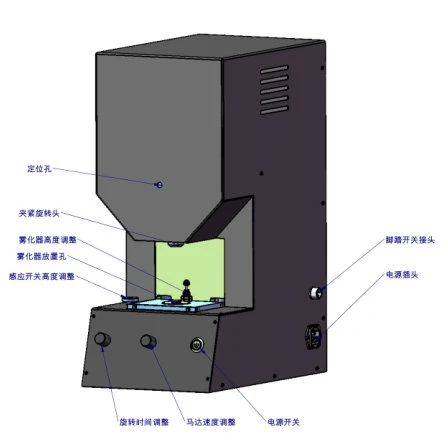

Function Description
1. Ko taw hloov txuas txuas: Lub tshuab yog nruab nrog ko taw hloov (nrog cov khoom siv), siv cov khoom siv dav hlau. Ntxig thiab nruj;
2. Lub hwj chim ntsaws: Ntxig lub hwj huam qaum (nrog cov khoom siv), thiab ceev faj kom tsis txhob xoob nws;
3. Fais fab hloov: tus kheej-locking fais fab hloov;
4. Kev hloov kho lub cev muaj zog: Lub pob qhov rooj no kho qhov kev sib hloov ceev (clockwise) ntawm lub clamping teb lub taub hau
Lub clockwise kev taw qhia yog ceev, thiab rov qab kev taw qhia yog qeeb;
5. Kev hloov lub sij hawm hloov: Lub pob qhov rooj no kho lub sij hawm tig (clockwise) ntawm (clamping rotary head)
Lub clockwise kev taw qhia qhia lub sij hawm ntev, thaum lub sij hawm rov qab taw qhia lub sij hawm luv luv;
6. Inductive hloov qhov siab hloov: Lub pob qhov rooj no kho qhov siab ntawm qhov hloov hauv inductive kom haum.
Atomizer ntawm tib qhov ntev (clockwise txhais tau hais tias upward, txwv tsis pub downward);
7. Atomizer qhov chaw tso: Muab lub atomizer uas yuav tsum tau muab ntsia hlau rau hauv lub qhov (sab nraum lub atomizer)
Yog tias txoj kab uas hla ntau dua 11 hli, yuav tsum muaj cov khoom siv pub ntxiv ntxiv), thiab cov neeg haus luam yeeb yuav tsum tau muab tso ncaj;
8. Atomizer qhov siab tsis kho: Qhov no tsis kho qhov siab kom haum rau qhov ntev sib txawv
Cov neeg haus luam yeeb (kho qhov siab kom haum rau cov neeg haus luam yeeb ntev, thiab kho qhov siab kom haum rau cov neeg haus luam yeeb luv);
9. Clamping teb lub taub hau: Lub taub hau clamping no yog sib koom ua ke los ntawm lub tog raj kheej thiab lub cev muaj zog rau clamp
Thiab rotating nkaus rau clamping thiab zawm tus neeg haus luam yeeb;
10. Positioning qhov: Qhov no yog siv rau kev txhim kho lub clamping teb lub taub hau;
11. Sensor qhov siab saib qhov qhov: Qhov no yog siv los soj ntsuam qhov siab ntawm lub sensor;
12. Cua inlet: Cov cua nkag ntawm lub tshuab yog nruab nrog 6 hli cua yeeb nkab.
