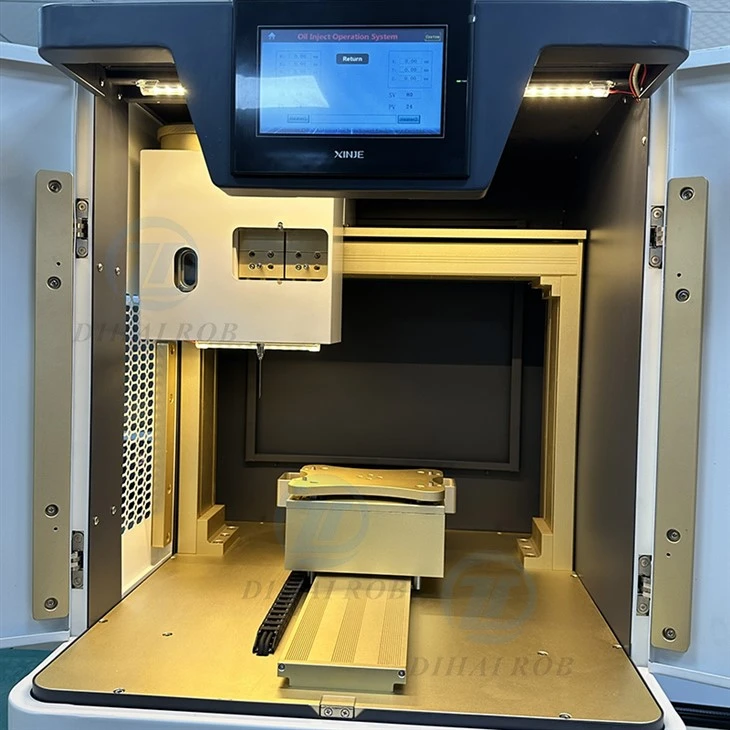

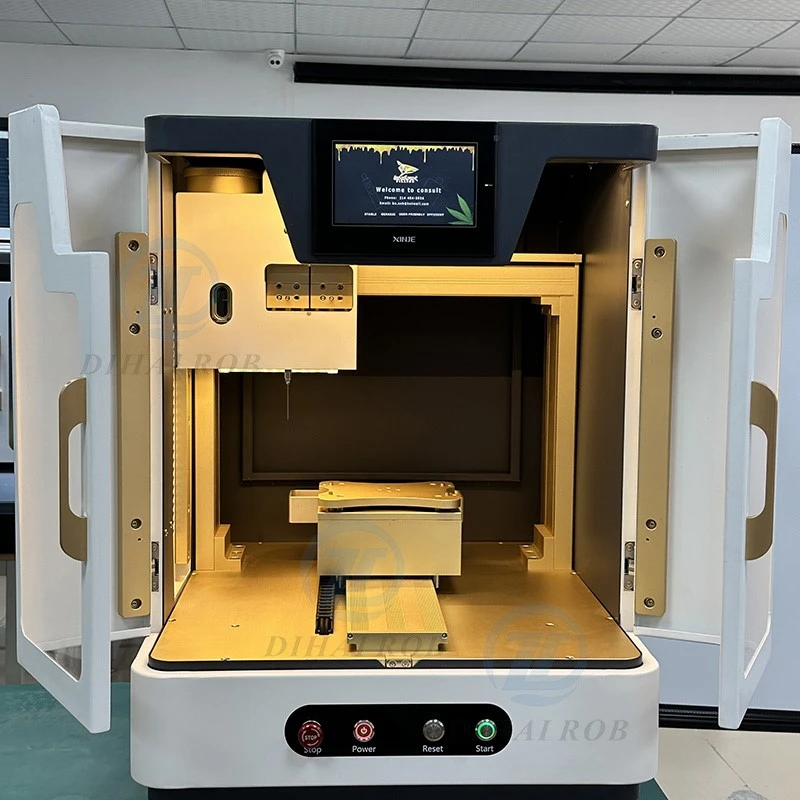

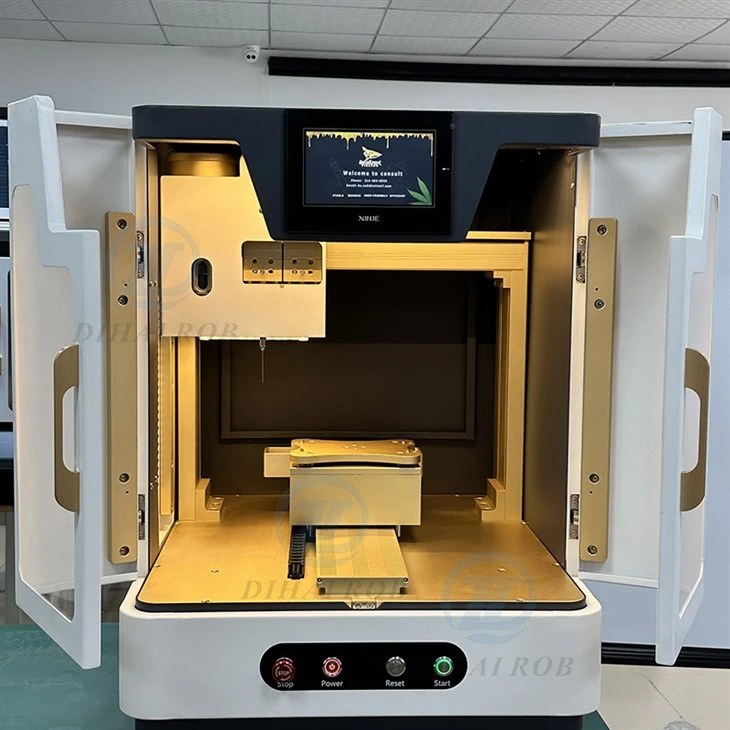

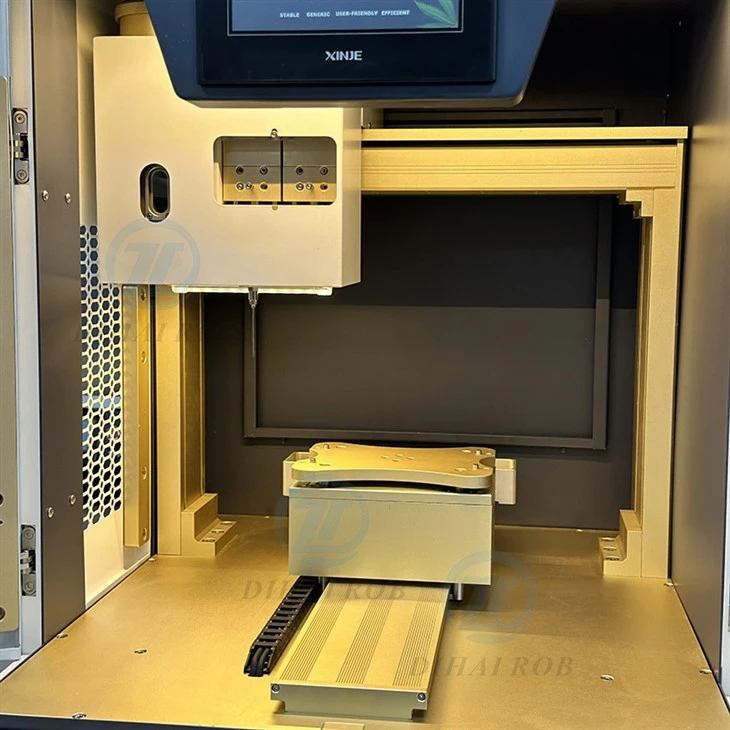

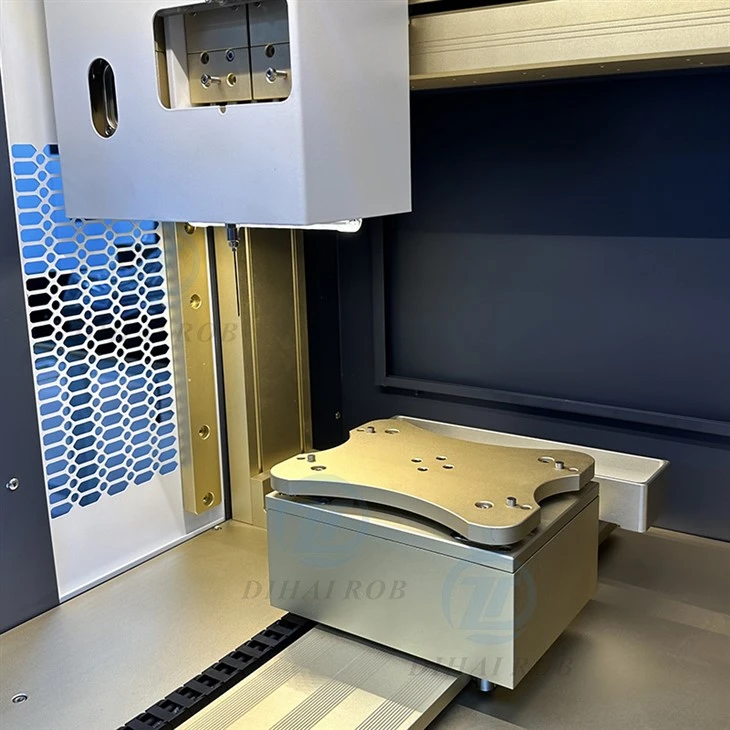

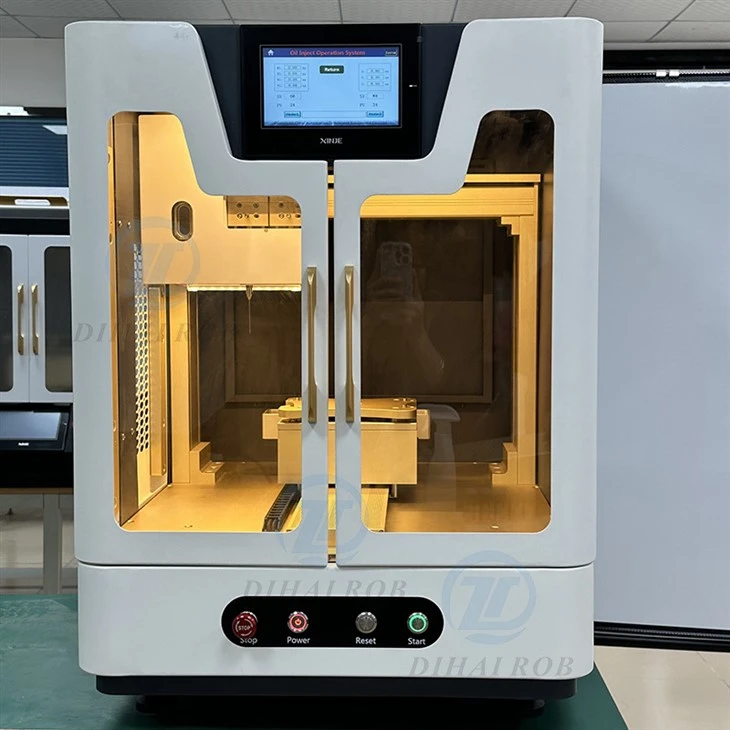

Single - Needle Electric Oil Injection Machine Desktop Needle Oil Injection Machine CBD Oil Filling Machine Liquid And Thick Oil Cartridges, Pods, Bottle Filling Machine Equipment
Single - Needle Electric Oil Injection Machine Desktop Needle Oil Injection Machine CBD Oil Filling Machine Liquid And Thick Oil Cartridges, Pods, Bottle Filling Machine Equipment
Single - Needle Electric Oil Injection Machine Desktop Needle Oil Injection Machine CBD Oil Filling Machine Liquid And Thick Oil Cartridges, Pods, Bottle Filling Machine Equipment
Single - Needle Electric Oil Injection Machine Desktop Needle Oil Injection Machine CBD Oil Filling Machine Liquid And Thick Oil Cartridges, Pods, Bottle Filling Machine Equipment
Single - Needle Electric Oil Injection Machine Desktop Needle Oil Injection Machine CBD Oil Filling Machine Liquid And Thick Oil Cartridges, Pods, Bottle Filling Machine Equipment
Single - Needle Electric Oil Injection Machine Desktop Needle Oil Injection Machine CBD Oil Filling Machine Liquid And Thick Oil Cartridges, Pods, Bottle Filling Machine Equipment
Single - Needle Electric Oil Injection Machine Desktop Needle Oil Injection Machine CBD Oil Filling Machine Liquid And Thick Oil Cartridges, Pods, Bottle Filling Machine Equipment

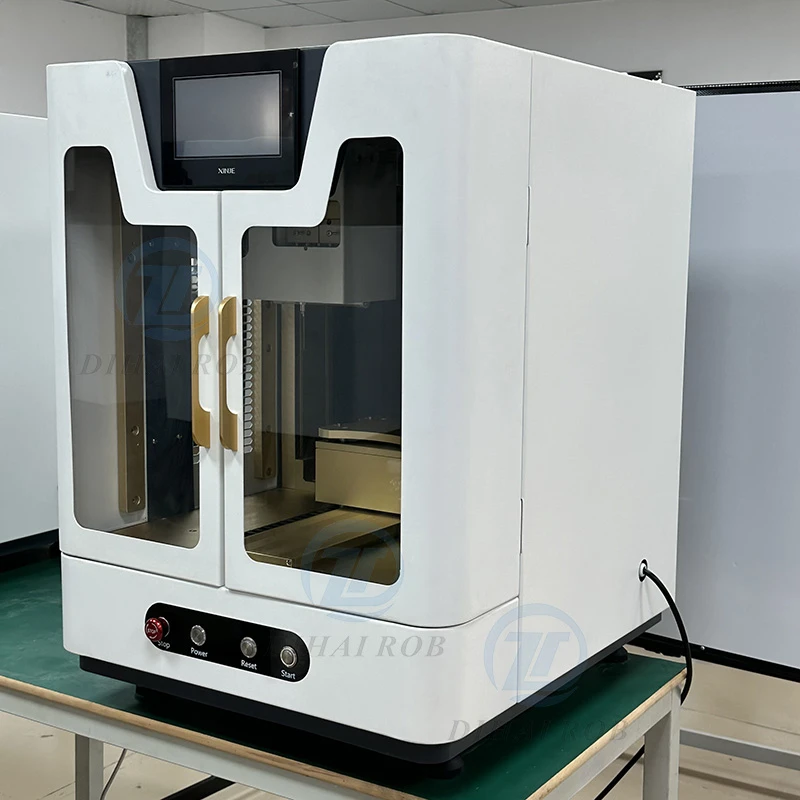

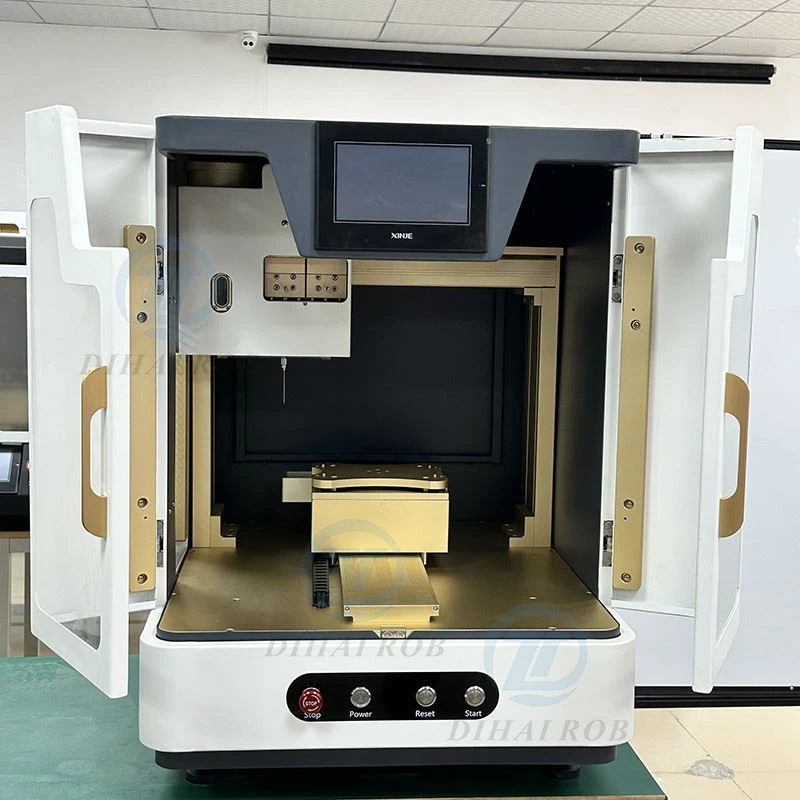

Ib Leeg - Koob Yas Kev Txhaj Tshuaj Tshuab Duab Txhaj Tshuaj Siv Lub Tshuab CBD, Pods, Phaj Filling Tshuab Khoom
Nws yog mas muaj ntawm cov neeg kho tshuab thiab tswj hluav taws xob. Cov hluav taws xob feem adops screen screen zaub. (Cov cuab yeej no tau xa mus ua ib lub rooj sib txoos ua tiav thiab tsis tas yuav cov neeg siv khoom nruab nrog nws tus kheej)
2. Ua haujlwm ua haujlwm
Cov cuab yeej no yog siv rau kev txhaj tshuaj e-kua hauv hluav taws xob vaporizers. Kev tsim ntawm cov cuab yeej siv hluav taws xob thiab cov khoom siv hluav taws xob suav nrog kev sib xyaw hluav taws xob, ib x-axis txav chaw tivthaiv, thiab ib tus y-axis txav chaw tiv thaiv. Kev ua haujlwm sib koom tes ntawm txhua qhov sib koom ua ke ua rau cov luam yeeb hluav taws xob atomizer kom txhaj E-kua tsuas yog, yooj yim, thiab meej. Cov ntaub ntawv ntawm cov khoom tau kis tau mus rau kov lub vijtsam los ntawm qhov kub thiab txias, thiab cov khoom siv tuaj yeem tswj tau, nrog ntau cov roj uas muaj teeb meem hauv lub sijhawm.
Cov Khoom Tseem Ceeb Technologies
Cov chaw muab yuav tsum tau ua
Txhawm rau kom ua tau zoo ntawm cov khoom siv, qhov chaw nyob nrog qhov kub ntawm 15-120 degree thiab ib tug txheeb ze cov av noo tsis muaj ntau tshaj 85% yuav tsum tau xaiv;
Qhov ntsuas kub ib puag ncig ntawm lub tsev kawm ntawv yuav tsum tsis txhob hloov pauv sai;
Nws yuav tsum tau nruab rau theem av, hauv qhov chaw tsis muaj kev tshav ntuj ncaj qha, muaj plua plav zoo thiab tsis muaj plua plav;
Kev thau khoom txawb thiab cov khoom siv ntawm cov khoom siv
Thaum cov khoom siv nkag mus rau cov khoom siv ntau lawm, thov siv nqa nqa nqa cov khoom siv thiab khaws nws kom paub meej tias cov khoom siv yog qib
Tshem cov ntoo ntim cov thawv ntim ua ntej cov cuab yeej nkag mus rau hauv kev ua haujlwm ntau lawm
Kev Tiv Thaiv Kev Nyab Xeeb
Tej Tshuab
(1) Thaum cov khoom siv ua haujlwm, nco ntsoov hais txog phau ntawv ua haujlwm.
(2) Hnav khaub ncaws ua haujlwm uas tsim nyog. Cov neeg uas ua haujlwm lossis cov cuab yeej tswj khoom siv tsis pub siv cov hlua khi, caj dab, lossis cov khaub ncaws xoob, thiab yuav tsum muaj cov cuab yeej tiv thaiv tsim nyog.
(3) Cov cuab yeej xav tau kom sov, thov tsis txhob kov nws nrog koj txhais tes kom tsis txhob kub hnyiab.
(4) Ua ntej cov cuab yeej siv ua haujlwm, xav txog cov kauj ruam ntawm kev ua haujlwm.
(5) Ua ntej ua kom muaj kev ua haujlwm nyob ze ntawm lub cuab yeej, txhua lub koomhaum nquag yuav tsum tau nres ua ntej
Lub ntsiab ua haujlwm tsis sib haum
| Lub Npe Project | Tsis |
|---|---|
| Yeem Voltage (V) | Ib Leeg - Theem Ac110VAC 60HZ |
| Cov Khoom Siv Hluav Taws Xob Muaj Peev Xwm (Fais Fab) | 1.2kw |
| Kub ntsuas ntau yam | 0 - 120 degree, qhov tseeb 2% |
| Khoom Dimensions | 620x670X800 (UNIT: Thov qhia meej, feem ntau hauv hli) |
| Cov Khoom Siv Hluav Taws Xob | 160Kg |
| Ib puag ncig ib puag ncig | Kub 0 - 100 degree |
| Cov kua ntim cov khoom raug (rated stroke) | Yuam kev tsawg dua lossis sib npaug rau 1% |
| Cov khoom ntim cov kua (rov ua dua) | Yuam kev 0. 3% - 0. 7% |
| Qhov ntau tshaj plaws muaj peev xwm ntawm cov roj cia lauj kaub | 1300ml |
| Rated tsav tsheb ntawm piston | 0.9N.m |
| Kev Muaj Peev Xwm Muaj Peev Xwm | {{0 {}}. {2 - 7 ml |
| Cov kua - Hu cov ntaub ntawv | Aluminium Alloy, Silicone, Stainless Hlau |

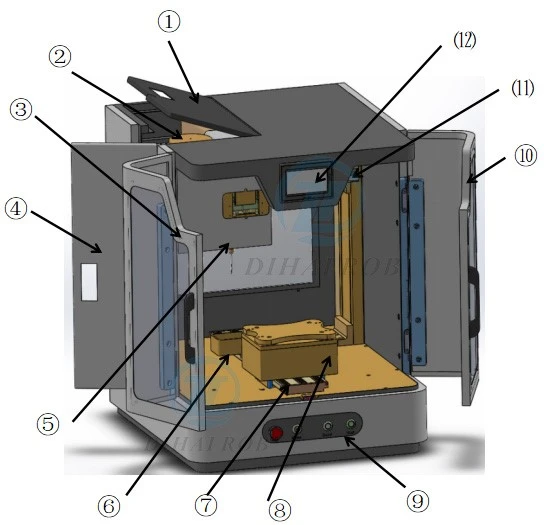

Cov Khoom Siv Txheej Txheem Txheej txheem
| Muaj pes tsawg tus lej | Lub npe |
|---|---|
| 1 | Sab Nrauv Npog |
| 2 | Roj Cia Tank |
| 3 | Pem Hauv Ntej Rooj 1 |
| 4 | Sab Qhov Rooj |
| 5 | Roj Txhaj Tso Kua Mis |
| 6 | Roj tau txais lub thawv |
| 7 | Y-Axis Tsiv Sib Dhia |
| 8 | Z-Axis Tsiv Sib Dhia |
| 9 | Vaj huam sib luag |
| 10 | Pem Hauv Ntej Rooj 2 |
| 11 | X-axis tsiv los ua ke |
| 12 | Kev Lag Luam kov Screen |

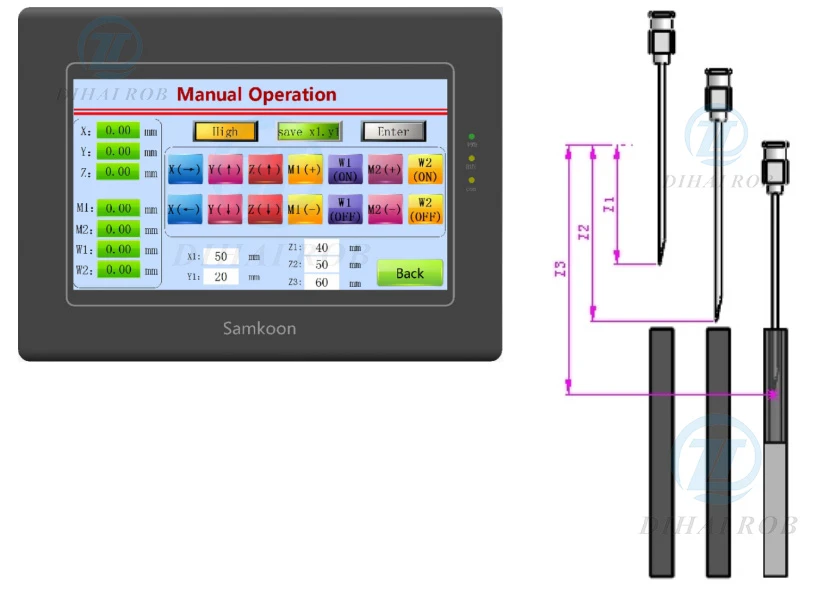

Txheeb xyuas cov roj txhaj tshuaj:
Txav mus rau X, Y, thiab Z axes rau cov roj txhaj haujlwm ntawm thawj Atomizer. Thaum "Txuag X1, Y1" raug nthuav tawm, nyem rau "ENTER" tus yuam sij kom txuag tau cov kev ua haujlwm pib tam sim no ntawm X \/ y axes.
Nyem rau lub toggegle dua. Thaum "Tseg Z1" tshwm sim, nyem rau "ENTER" tus yuam sij kom txuag tau lub sijhawm zoo tshaj plaws Lifting Z1 rau cov roj txhaj rau ntawm Z - axis.
Ua haujlwm ntawm Z - axis txav mus hauv qab. Thaum pom tias rab koob tau mus txog sab saum toj ntawm lub atomizing thiab tsis muaj kev sib tsoo thaum sab laug - xis zog, nyem rau ntawm tus yuam sij tog. Thaum "Tseg Z2" tshwm sim, nyem rau "Enter" tus yuam sij kom txuag tau qhov siab Z2 ntawm Z - Axis ze rau sab saum toj ntawm lub atomizer saum toj no.
Txuas ntxiv ua haujlwm Z - axis txav mus hauv qab. Saib xyuas cov roj txiab tob thaum rab koob yog ntxig rau hauv atomizer. Nyem rau lub toggegle. Thaum "Tseg Z3" tshwm, nyem rau "ENTER" yuam sij kom txuag tau cov roj txhaj hmoov tob h3 ntawm z - axis. Tom qab ntawd txoj hauj lwm parameter teeb tiav lawm, raws li qhia nyob rau sab xis - daim duab tes.
