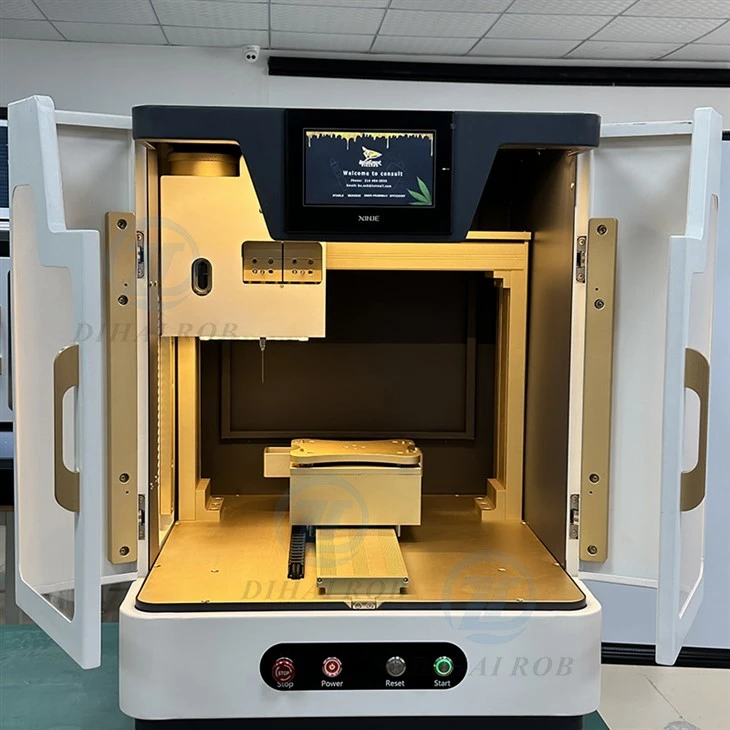

CBD PUV FILLING ROJ TSHUAB Ib Txhaj Roj Txhaj Tshuab
Nws tau txais kev vam meej X, Y, Z - Axis tsiv system, uas tuaj yeem hloov kho cov roj ntawm cov roj yuav tsum tau ua kom tau cov roj at atomemers ntawm cov sib txawv ntawm cov sib txawv. Cov khoom siv tau nruab nrog lub siab - precision kua ntim ntim cov khoom tswj. Qhov ua yuam kev ntawm cov kua ntim yog (rated stroke) yog tsawg dua los yog sib npaug ntawm cov roj ntim cov roj (}}. Cov khoom siv tau yooj yim ua haujlwm. Los ntawm tus neeg siv - kev ua haujlwm interface interface, cov neeg ua haujlwm tau yooj yim txhim tsa cov roj txhaj txoj haujlwm thiab lwm yam kev ua haujlwm. Nws cov roj tso hluav taws muaj qhov muaj peev xwm siab tshaj plaws ntawm 1300mL, txo cov teeb meem ntawm cov kev pheej yig ntau.
Nyob rau tib lub sijhawm, cov cuab yeej siv cov kua qib siab - cov khoom siv tau zoo - xws li cov hlau, suav nrog cov khoom roj thiab cov khoom siv tsis zoo. Nws yog qhov haum rau loj - nplai atomizer ntau lawm lag luam, uas tuaj yeem txhim kho kev ua tau zoo thiab txo cov nqi ntau lawm.
Kev Ua Haujlwm Kev Ua Haujlwm
Cov kev tso kawm ntawm atomizing tais:

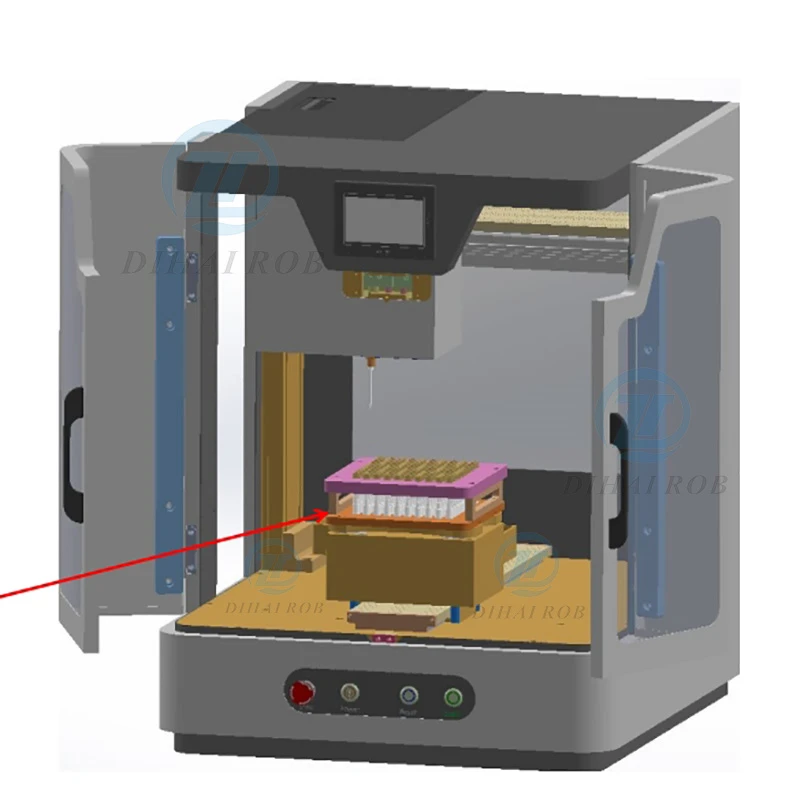

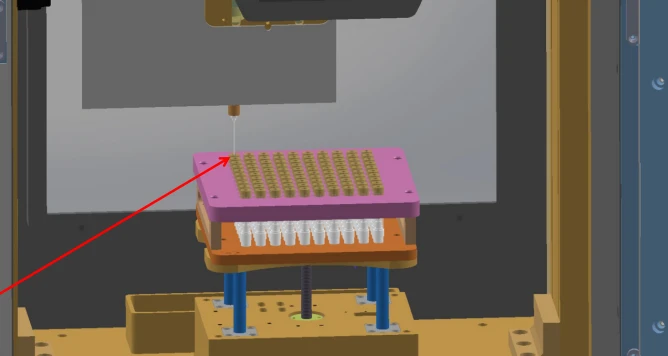

Tso lub atomizing tais ntawm lub tais, dlhos plaub qhov chaw ntawm lub tais nrog plaub qhov chaw pins ntawm lub tais, raws li qhia hauv daim duab.
Kev teeb tsa atomizer txoj haujlwm tsis muaj:
Nyob rau hauv lub tsev nplooj ntawv ntawm kev ua haujlwm interface, nyem "pib dua" kom rov pib dua txhua txoj kab, thiab tom qab ntawd nkag mus rau MHI system ua haujlwm interface - phau ntawv muaj kev ua haujlwm.
Ua haujlwm x, y, thiab z axes txav thiab saib cov roj roj ntawm cov koob txhaj tshuaj thiab thawj atomizer, raws li qhia nyob rau sab xis - tes daim duab.
NCO TSEG: Qhov ntev ntawm cov roj txhaj tshuaj syringes siv rau atomizers ntawm qhov ntev sib txawv sib txawv. Yog tias qhov ntev ntawm lub atomizer yog tsawg dua 40 hli, siv cov tshuaj pleev ntev ntev; Yog tias qhov ntev ntawm lub atomizer ntau dua 100 hli, siv cov koob txhaj tshuaj luv.
Lub ntsiab ua haujlwm tsis sib haum
| Lub Npe Project | Tsis |
|---|---|
| Yeem Voltage (V) | Ib Leeg - Theem Ac110VAC 60HZ |
| Cov Khoom Siv Hluav Taws Xob Muaj Peev Xwm (Fais Fab) | 1.2kw |
| Kub ntsuas ntau yam | 0 - 120 degree, qhov tseeb 2% |
| Khoom Dimensions | 620x670X800 (UNIT: Thov qhia meej, feem ntau hauv hli) |
| Cov Khoom Siv Hluav Taws Xob | 160Kg |
| Ib puag ncig ib puag ncig | Kub 0 - 100 degree |
| Cov kua ntim cov khoom raug (rated stroke) | Yuam kev tsawg dua lossis sib npaug rau 1% |
| Cov khoom ntim cov kua (rov ua dua) | Yuam kev 0. 3% - 0. 7% |
| Qhov ntau tshaj plaws muaj peev xwm ntawm cov roj cia lauj kaub | 1300ml |
| Rated tsav tsheb ntawm piston | 0.9N.m |
| Kev Muaj Peev Xwm Muaj Peev Xwm | {{0 {}}. {2 - 7 ml |
| Cov kua - Hu cov ntaub ntawv | Aluminium Alloy, Silicone, Stainless Hlau |
Cov Khoom Siv Txheej Txheem Txheej txheem
| Muaj pes tsawg tus lej | Lub npe |
|---|---|
| 1 | Sab Nrauv Npog |
| 2 | Roj Cia Tank |
| 3 | Pem Hauv Ntej Rooj 1 |
| 4 | Sab Qhov Rooj |
| 5 | Roj Txhaj Tso Kua Mis |
| 6 | Roj tau txais lub thawv |
| 7 | Y-Axis Tsiv Sib Dhia |
| 8 | Z-Axis Tsiv Sib Dhia |
| 9 | Vaj huam sib luag |
| 10 | Pem Hauv Ntej Rooj 2 |
| 11 | X-axis tsiv los ua ke |
| 12 | Kev Lag Luam kov Screen |
Txheeb xyuas cov roj txhaj tshuaj:

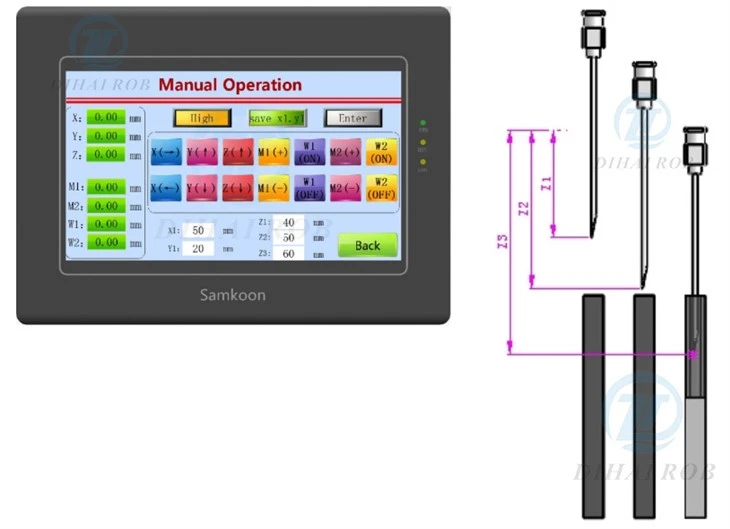

Txav mus rau X, Y, thiab Z axes rau cov roj txhaj haujlwm ntawm thawj Atomizer. Thaum "Txuag X1, Y1" raug nthuav tawm, nyem rau "ENTER" tus yuam sij kom txuag tau cov kev ua haujlwm pib tam sim no ntawm X \/ y axes.
Nyem rau lub toggegle dua. Thaum "Tseg Z1" tshwm sim, nyem rau "ENTER" tus yuam sij kom txuag tau lub sijhawm zoo tshaj plaws Lifting Z1 rau cov roj txhaj rau ntawm Z - axis.
Ua haujlwm ntawm Z - axis txav mus hauv qab. Thaum pom tias rab koob tau mus txog sab saum toj ntawm lub atomizing thiab tsis muaj kev sib tsoo thaum sab laug - xis zog, nyem rau ntawm tus yuam sij tog. Thaum "Tseg Z2" tshwm sim, nyem rau "Enter" tus yuam sij kom txuag tau qhov siab Z2 ntawm Z - Axis ze rau sab saum toj ntawm lub atomizer saum toj no.
Txuas ntxiv ua haujlwm Z - axis txav mus hauv qab. Saib xyuas cov roj txiab tob thaum rab koob yog ntxig rau hauv atomizer. Nyem rau lub toggegle. Thaum "Tseg Z3" tshwm, nyem rau "ENTER" yuam sij kom txuag tau cov roj txhaj hmoov tob h3 ntawm z - axis. Tom qab ntawd txoj hauj lwm parameter teeb tiav lawm, raws li qhia nyob rau sab xis - daim duab tes.
